10kVA to 1000kVA Power Diesel Generator Fu. K Brand U. S. a Brand Ricardo

Basic Info

Model NO.	Ricardo generator set
Type	Micro-Computer Control Automatic Diesel Generator
Installation Method	Fixed
Stroke	Four Stroke
Cooling Method	Water Cooling
Output Type	AC Three Phase
Speed	Speed
Conditions of Use	Land Use
Usage	Common Units
Landuse Type of Unit	Low Noise Automation Type
Excitation Mode	AC Rotating Exciter
Diesel Generator Engine Brand	USA UK Brand/Deutz/Lovol/Weichai/Shanghai/Yucha
Diesel Generator Alternator	St/Stc Alternator / Stamford Type Brushless Altern
Diesel Generator Control System	Digital- Hgm6120 Automatic Control System
Diesel Generator Power Range	7kw -2500kw
Diesel Generator Certification	ISO/ Ce / etc
Diesel Generator Color	Optional
Diesel Generator Frequency	50Hz/60Hz
Diesel Generator Voltage	Optional
Diesel Generator Warranty	1 Year/ 1000 Hours
Diesel Generator Cooling System	Water Cooled/ Air Cooled
Transport Package	Standard Package
Specification	2600*1000*1450
Trademark	JET
Origin	China
HS Code	8502110000
Production Capacity	900 Sets/ Month

Product Description

diesel generator set All design for open, Silent, Supper silent, Soundproof, Trailer, container type1.Engine brand : U.S.A brand, U.K brand , Volvo, mitsubishi,MTU,Deutz , LovoL , Lister Petter, Doosan, Shangchai, Yarman, Foton-Isuzu, Xichai, SDEC, Weichai, MTU, Ricardo, Jichai.and others2. Alternator - Optional Stamford, Leroy Somer, Marathon, JET, Mecc alte.3.System: control system, ATS system, remote control system, parallel operation system, 4.Control panel : Smartgen , Deepsea,alte including digital LED genset control model: HGM6120U, DSE7320, DSE6020, AMF20, AMF255.Radiator :Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working6.Canopy :Generator diesel High-quality steel are thickness canopy -- 2MM to 6MM7.Material: high density sound-absorbing material -- sound insulation, fireproofing8.Battery:Generator diesel 12V/ 24V DC battery with charger, battery connects wire9.Fuel tank:Generator diesel 10-12 hours fuel tank with fuel indicator, long time for working.10.Protection :Genset High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker11.New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.12.design:Generator diesel Beautiful & practicably design, Bottom hole for forklift, water outlet & oil outlet for easy maintenance13.Door : Double open door on both sides of the Gensets.Spacious doors can check for every part of the engine and alternator.Part 1. Specification of all U.K brand engine diesel generator set

Model	Standby output KVA	Standby output KW	Prime Output KVA	Prime Output KW	Chinese Ricardo Diesel Engine	No. of Cylinder	Governor	Displacement	Alternator Stamford
GF-10	14	11	13	10	K2105D/495	L2	Mech.	1.63	JET164C
GF-12	17	13.2	15	12	495D	L4	Mech.	3.61	JET164D
GF-15	21	16.5	19	15	495D	L4	Mech.	3.61	JET184E
GF-20	28	22	25	20	K4100D	L4	Mech.	3.61	JET184F
GF-24	33	26	30	24	K4100D	L4	Mech.	3.61	JET184G
GF-30	41	33	38	30	K4100ZD	L4	Mech.	3.93	JET184H
GF-40	55	44	50	40	R4105ZD	L4	Mech.	4.33	JET224D
GF-50	69	55	63	50	R4105AZD	L4	Mech.	4.5	JET224E
GF-70	96	77	88	70	R6105ZD	L6	Mech.	5.86	JET224G
GF-80	110	88	100	80	R6105ZLD	L6	Mech.	6.46	JET274C
GF-90	125	100	113	90	R6105AZLD	L6	Mech.	6.49	JET274D
GF-100	138	110	125	100	R6105IZLD	L6	Mech.	6.49	JET274ES
GF-120	165	132	150	120	R6110ZLD	L6	Mech.	7.52	JET274F
GF-150	206	165	188	150	TH6113AZLD	L6	Mech.	7.82	JET274G
GF-180	248	198	225	180	R6126ZD	L6	Mech.	9.726	JET274J
GF-200	275	220	250	200	6135BZLD	L6	Mech.	13.3	JET274K
GF-250	344	275	313	250	12V135AZD	12V	Mech.	25.8	JET444E
GF-300	375	300	413	330	12V135AZLD	12V	Mech.	25.8	JET444FS
GF-360	495	396	450	360	12V135BZLD	12V	Electric	26.6	JET544C
GF-400	550	440	500	400	12V135BZLD-1	12V	Electric	26.6	JET544D
GF-500	688	550	625	500	SY630	12V	Electric	27.14	JET544E1
GF-600	825	660	750	600	SY720	12V	Electric	29.61	JET634B

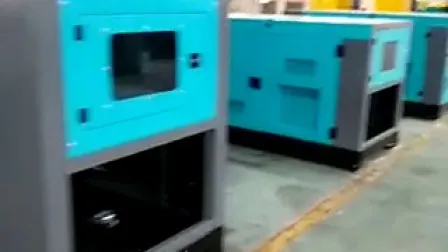

Part 2. U.K brand engine diesel generator set Detail pictures1.open type and silent (canopy) type diesel generator set pictures Power range from 10kva/8kw -2500kva/2000kw 3.Mobile trailer type diesel generator set picturesSmall power 2 wheels trailer, big power use 4 wheels trailer



Part 3: Diesel generator set description

main standards	GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard
Prime output power	from 5KVA to 2500KVA
Rated voltage	120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional
Generator Phase and connecting	3 phase, 4wire
Rated frequency	[email protected] or [email protected]
Alternator excited type	Brushless, self excited or PMG optional
Alternator Insulation	Class H
Alternator Protection	IP21 ~ IP23
Voltage regulation	AVR automatic control 1%
Altitude above sea level	≤1000 meters
Ambient air temperature	≤40°C
Relative air humidity	≤ 90%

Part 4 :Our advantages for diesel generator set

1.Generator diesel High-quality steel are thickness canopy -- 2MM to 6MM2.Generator diesel high density sound-absorbing material -- sound insulation, fireproofing3.Generator diesel 12V/ 24V DC battery with charger, battery connects wire4. Generator diesel 10-12 hours fuel tank with fuel indicator, long time for working.5. Genset High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker6.New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.7.Generator diesel Beautiful & practicably design, Bottom hole for forklift, water outlet & oil outlet for easy maintenance8. Double open door on both sides of the Gensets.Spacious doors can check for every part of the engine and alternator.Part 5:Warranty & Certification warranty : one year or 1000 hours(diesel generator set ) whichever reach first from exfactory date.1. During the guarantee period-ur will provide the free easydamageable spare parts of alternator caused by our quality of production or raw material. 2. After expiration-our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.Certification: CE, ISO , SASO , EPA , and the othersOur Company

FUZHOU JET ELECTRIC MACHINERY CO., LTD is a leadind manufacturer focus on Gasonline Generators, Disel Generators, Pump, Motor,Garden Machines. The factory is located in Fuan City Fujian provice, which is a well-konw electrical and machine city in China. For more convenient and efficient business, we set up company in HONGKONG and FUZHOU CITY.

More details please kindly contact us
